Aaronia SMA Cable 10m with tightening nuts

10m SMA cable with plastic screw aid / knurled nut. SKU: 501/010.

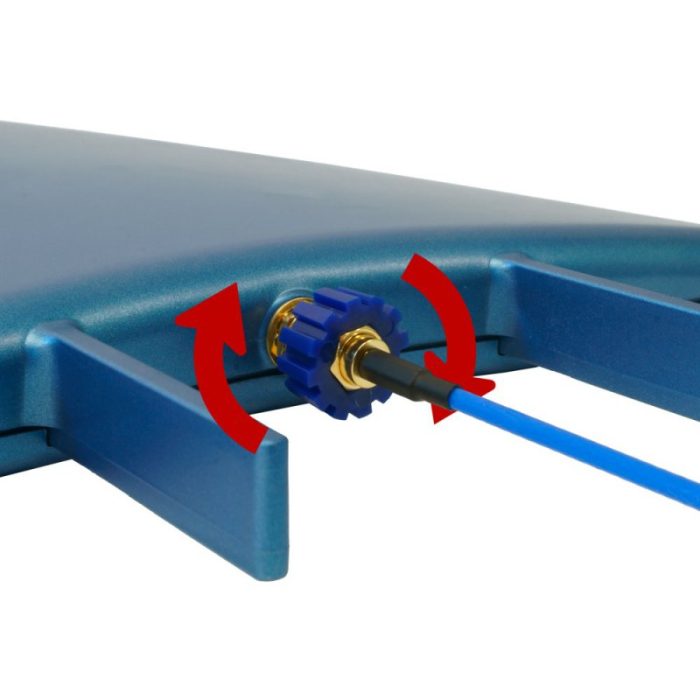

No fumbling anymore! You need no tool to screw/unscrew the SMA cable anymore.

The Materiel is UV-resistant, heat and cold resistant and very flexible, but nevertheless it offers a bombproof mounting.

Technical details:

• Length: 10m
• Colour: Blue
• Outer diameter: 5,5mm
• Plug: 2 x SMA plug (male)
• Nominal impedance: 50 Ohms
• Capacity: 82pF/m
• VSWR: max. 1:1,3 (6GHz)
• Damping 1GHz: 1,2dB (0,240dB/m)
• Damping 2GHz: 1,9dB (0,380dB/m)
• Damping 3GHz: 2,2dB (0,440dB/m)
• Damping 6GHz: 3,5dB (0,700dB/m)
• Max. power capacity: 126W CW (900MHz)
• Temperature range: -40°C to 85°C
